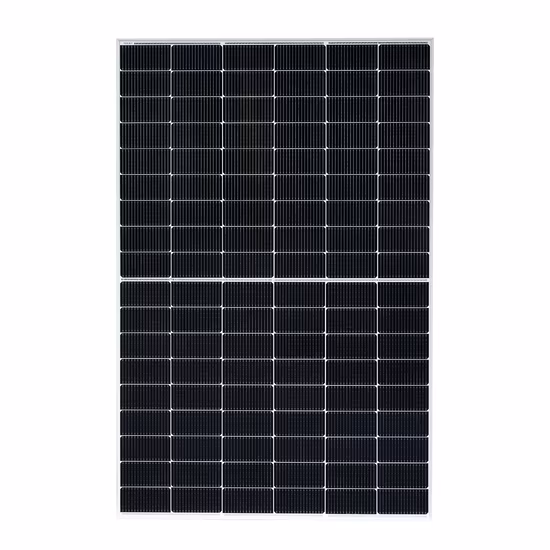

450W Monocrystalline Solar Panel, Solar Module

450W Monocrystalline Solar Panel, Solar Module

Overview 450w Half Cells Monocrystalline solar panelProduct Description 1. Key Features Positive Power Tolearance (0 ~ +
Basic Info
Model NO. GS166-144-450M
Size 2094*1038*35mm
Weight 23.5kg
Solar Cells 166*166mm Monocrystalline
Frame Aluminum Alloy
Glass 3.2mm Low Iron Tempered
Junction Box IP68
Cable&Connector 4 mm2,Evo2 or Evo2 Compatible
Transport Package by Carton with Pallets
Trademark GREATSOLAR
Origin Anhui
HS Code 8541430000
Production Capacity 100000
Product Description
450w Half Cells Monocrystalline solar panelProduct Description

1. Key Features
Positive Power Tolearance (0 ~ +5W) guaranteed

High module conversion efficiency (up to 21.7%)

Solar power degradation enable ty low LID Mono PERC technology:first year< 2%,0.55% year 2-25

Solid PID resistance ensured by solar cell process optimization and careful module BOM selection

Reduced resistive loss with lower operating current

Higher energy yield with lower operating temperature

Reduced hot spot risk with optimized electrical design and lower operating current

Product Parameters

1. Mechanical&Operating Parameters

Cell Orientation144(6×24)Operational Temperature-40ºC ~ +85ºC
Junction BoxIP68;three diodesPower Output Tolerance0~ +5W
Output Cable4mm²,300mm lengthVoc and Isc Tolerance±3%
Glass3.2mm coated tempered glassMaximum System VoltageDC1500V(IEC)
FrameAnodized aluminum alloyMaximum Series Fuse Rating20A
Weight23.5kgNominal Operating Cell Temperature45±2ºC
Dimension2094×1038×35mmSafety ClassClass II
Packaging31pcs/pallet,682pcs/40HQ

2.Electrical Characteristics(STC)
Module NumberGSM6-144-440MGSM6-144-445MGSM6-144-450MGSM6-144-455MGSM6-144-460M
Maximum Power(Pmax /W)440445450455460
Open Circuit Voltage (Voc/V)48.748.949.1049.3049.50
Short Circuit Current( Isc /A)11.4811.5511.6111.6611.70
Maximum Power Voltage( Vmp/V)40.740.9041.10 41.3041.50
Maximum Power Current(Imp /A)10.8210.8910.9611.0211.09
Module Efficiency (%)20.23820.6220.8521.0821.31
STC(Standard Testing Conditions):Irradiance 1000W/m2,Cells Temperature 25ºC,Spectra at AM1.5

3. I-V CurveProduction progress

450W Monocrystalline Solar Panel, Solar Module

Detailed Photos

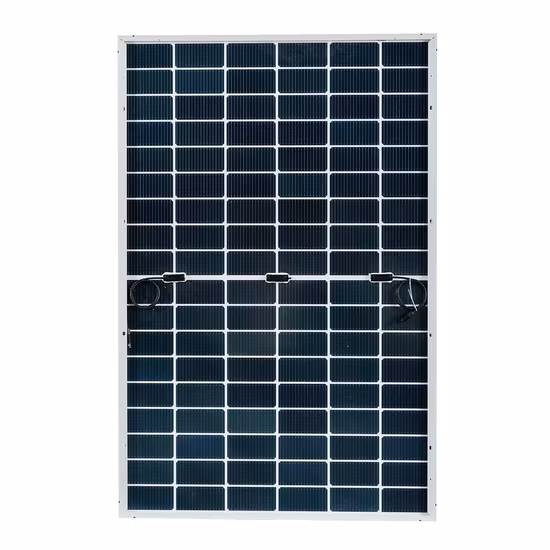

450W Monocrystalline Solar Panel, Solar Module

450W Monocrystalline Solar Panel, Solar Module

450W Monocrystalline Solar Panel, Solar Module
